TS100 Mini Digital Electric Soldering Iron LCD Programable Display Adjustable Temperature with Solder Tip with Power supply|Electric Soldering Irons

  • $62.00
  • Save $26

security payment logo

Selling Point

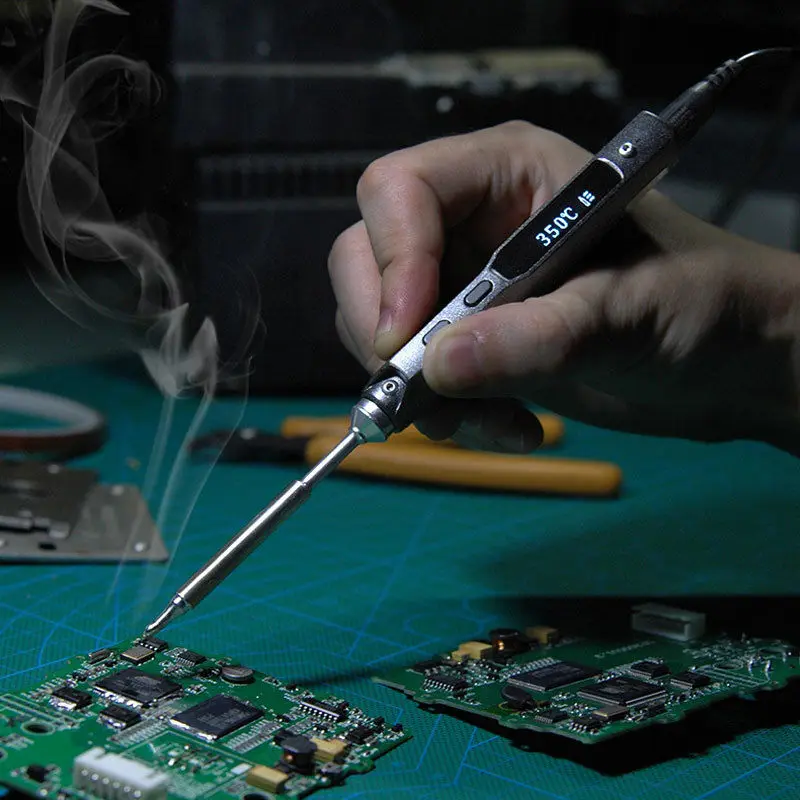

· Control part: TS100's shell is made of polycarbonate plastic, while employs 304 stainless steel embedment for inserting soldering tips. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with STM32 chip. Under these features, the temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C, and the TS100 also has sleep mode and automatic over-heating warning.

· Soldering tip heating end: built-in heating core, pocket-size making it more convenient. Seven replaceable tips meet your different needs.

· External power supply: DC5525 power port is compatible with DC 12-24V laptop AC adapter/power bank/car power.

· Micro USB port interface: set up config files to design your own temperature rising curves and custom functions.

· Additional function: open-source application layer.


· Power: 65W.

· Temperature stability: ±2%.

· Soldering tip resistance to ground: <2Ω.

· Temperature range: 100℃ - 400℃ (max).

· Max operation ambient temperature: 40°C.

· OLED screen.

· Micro USB port.

· DC5525 port.

· 7 types of soldering iron tips available.

· Fashionable and detachable.

· Open source.

· Efficient to work with.

· Wide compatibility.

· Control part: length: 96mm, diameter: 16.5mm.

· Heating part: length: 72+33mm, diameter: 5.5mm.

· Weight: 33g (TS100 controllor Only)

· Compliant with EU certification: CE FCC.

Package includes:

1 x Soldering iron control terminal

1 x Soldering iron tip(BC2 or B2 or I)

1 x hexagon device

1 x Manual

1 x Power Supply with US/EU/UK Plug

1 x bracket

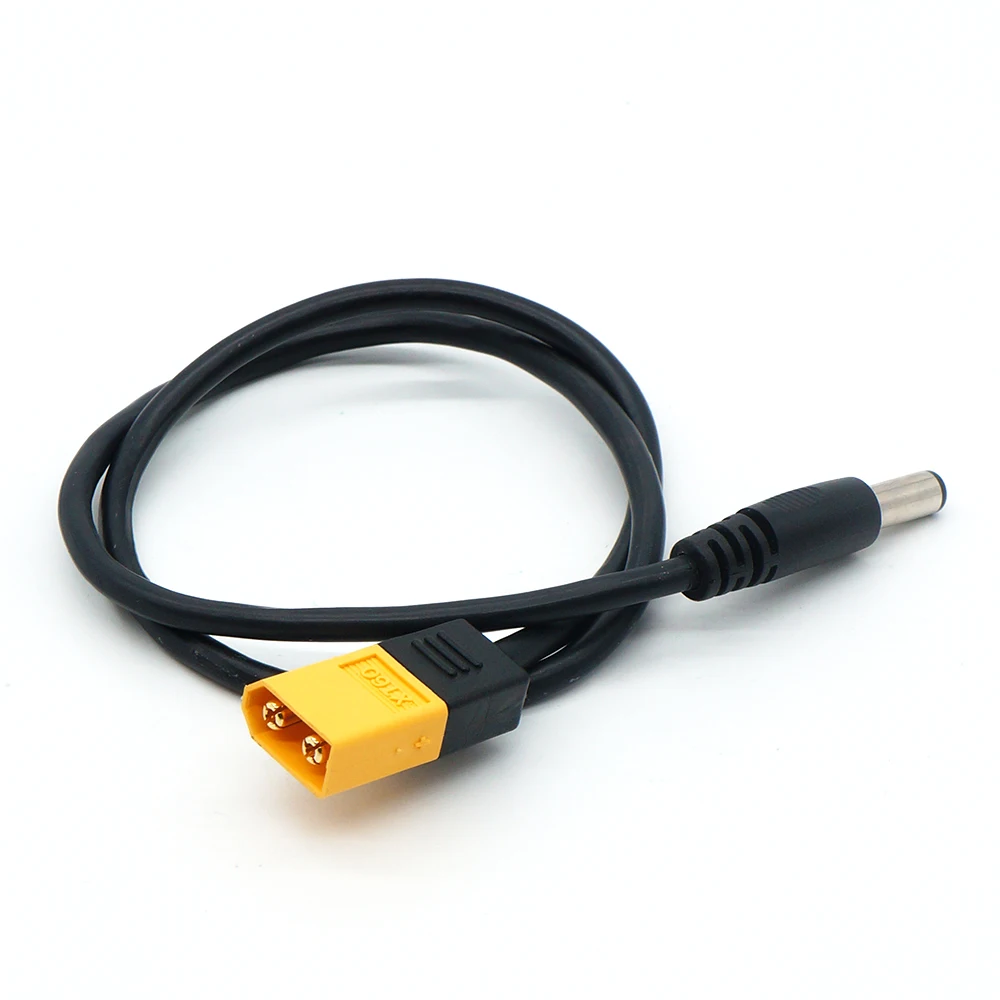

1 x Tube solder wire1 x TS100 Specialized Adpater Power Cable XT60
